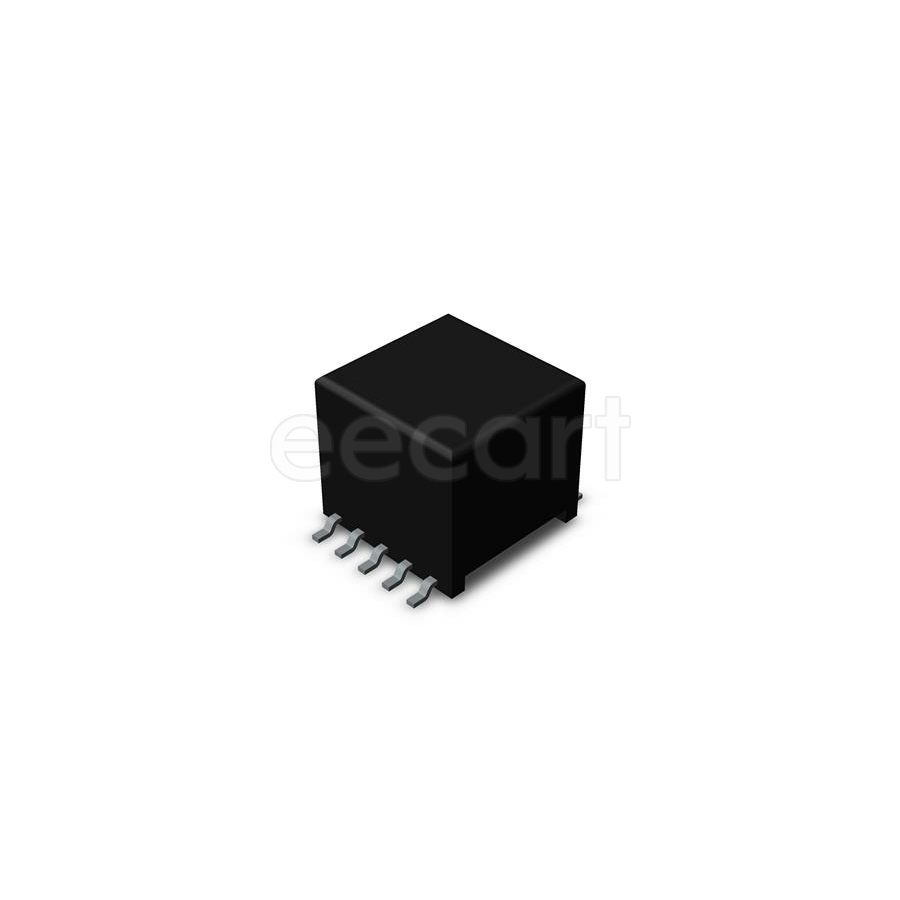

T6003NL
Manufacturer:
Pulse Electronics
Mfr.Part #:
T6003NL
Datasheet:
Description:
Transformers SMD/SMT 10 kHz
| Parameter | Value |
|---|---|
| Height - Seated (Max) | 12.32 mm |
| Length | 13.46 mm |
| Width | 13.11 mm |
| Termination | Gull Wing |
| Max Operating Temperature | 70 °C |
| Min Operating Temperature | 0 °C |
| Number of Pins | 10 |
| Height | 12.32 mm |
| Packaging | Reel |
| Depth | 17.65 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Lead/Base Style | Gull Wing |
| Frequency | 10 kHz |
| DC Resistance (DCR) | 55 Ω |
| Insertion Loss (dB) | 1.9 dB |
| Lifecycle Status | Production (Last Updated: 7 months ago) |
| Turns Ratio | 1:1 |
| Isolation Voltage | 1.5 kV |
| Return Loss | 20 dB |
| Schedule B | 8504312000 |
Out of Stock
